Comms kit v0.4

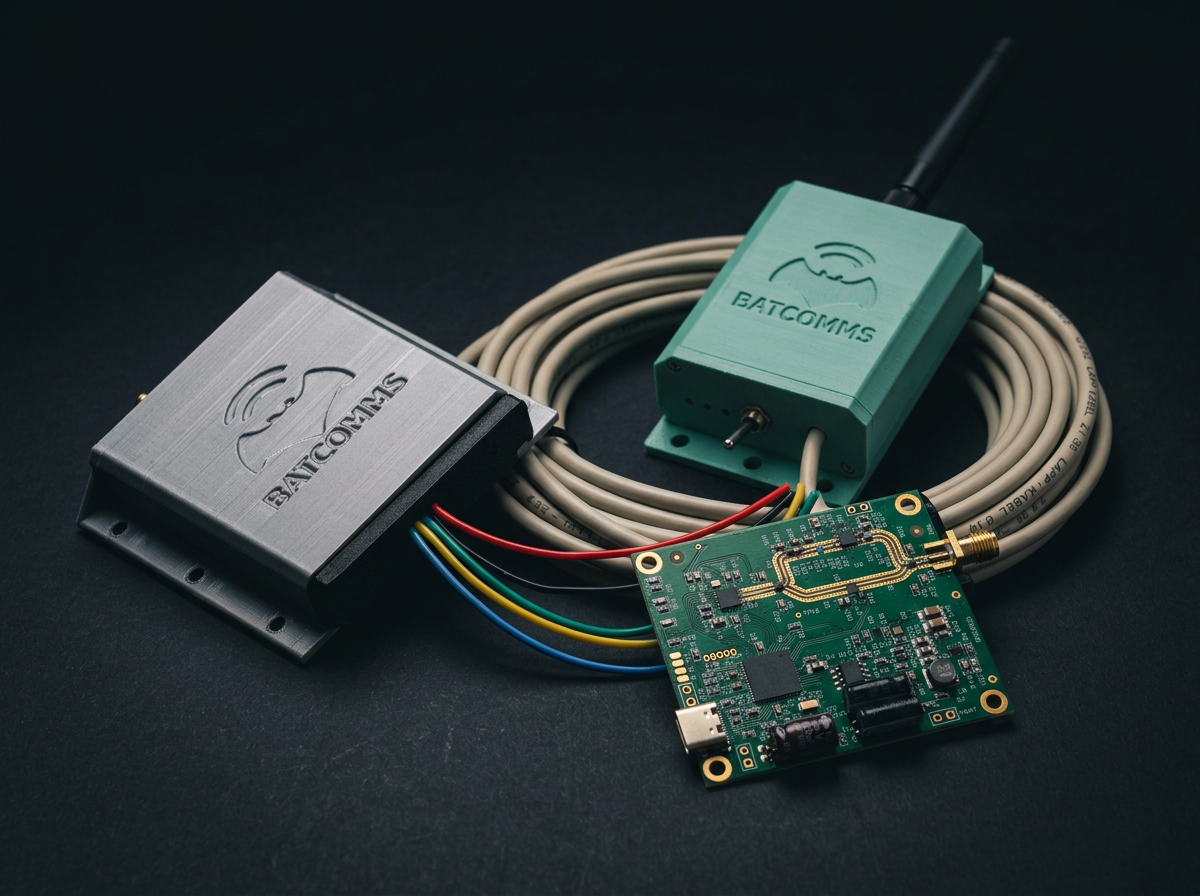

The BC communication kit is a complete radio communication solution for controlling devices and/or transmitting sensor data. The kit consists of three units: a transmitter, a receiver, and a repeater. It is suitable for use in UGV, UAV, and sensor network applications.
PICTURES:
DESCRIPTION
The BC Communication Kit is Batcomms’ data-link solution designed for device control, data exchange, and sensor data transmission. The solution combines three devices into a complete communication system intended primarily for military applications.
At the heart of the system is our intelligent repeater, which creates a star network for up to 250 devices, with up to 10 devices active simultaneously. The repeater provides a communication coverage area with a diameter of more than 100 kilometres.
The kit is suitable for unmanned ground and aerial vehicles, sensor networks, and other remotely controlled devices. Both the hardware and software can be adapted to meet the technical requirements of a specific project.
Specification
| Parameter | Value |
|---|---|
| Kit contains | 1 x repeater, 1 x TX, 1 x RX |
| Firmware | v3.08 |
| Repeater weight w. enclosure & battery | 108 gr |
| Radio coverage area | 100+ km |
| True frequency hopping | channels between 2300-2700 MHz, < 1 MHz channel step |
| Encryption | AES128 |
| Radio params | out +32.6dBm typical sensitivity > -102 dBm typical, total link budget with demo antennas 140,6 dBm |
| Protocol | Proprietary |
Download PDF
Download the product’s technical information as a PDF file.
Use cases
Control of various types of drones with telemetry feedback, sensor data collection, and inter-computer data communication, including in crisis situations. Remote control and remote activation of devices, home electronics control, and ground station construction.
For all our devices, custom solutions and customer-specific requirements are welcome. We develop both the hardware and software ourselves, allowing us to adapt our products to your needs. All development takes place in Estonia.
