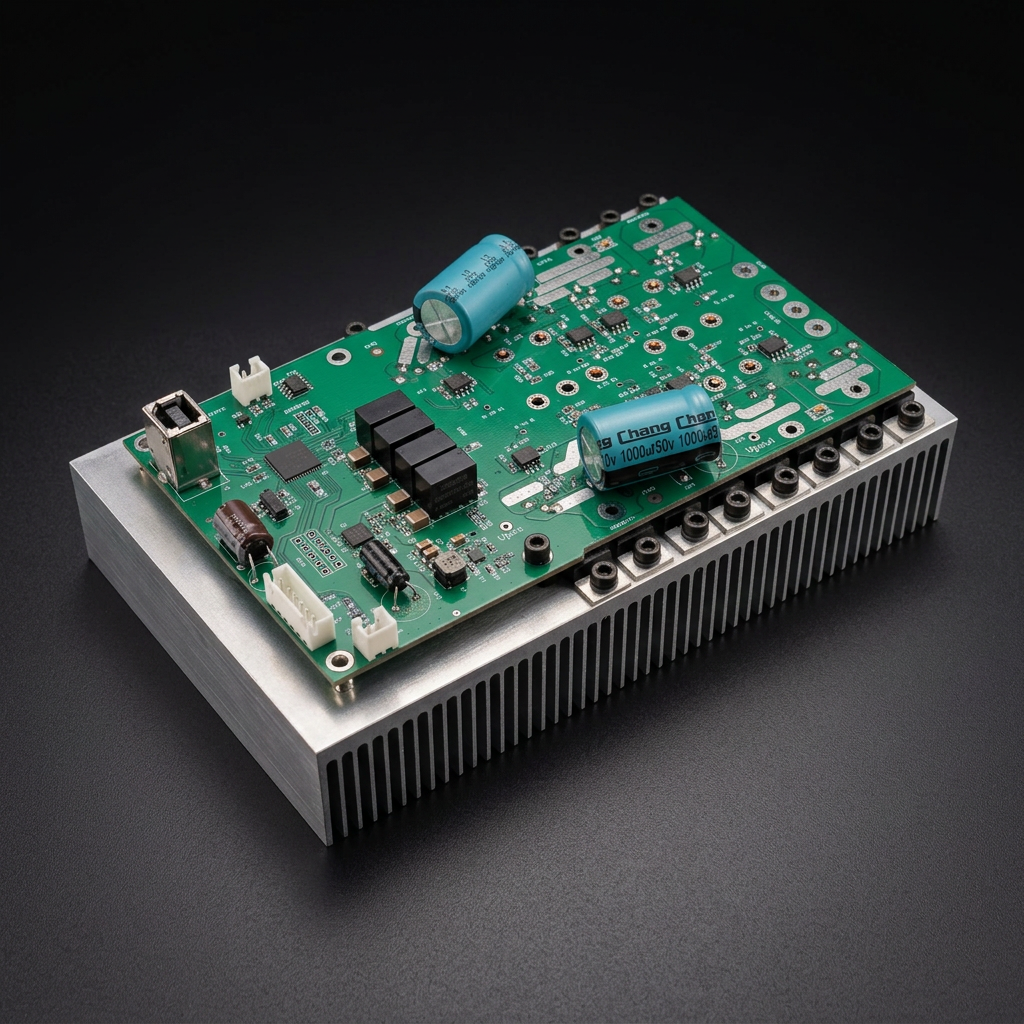

UGV / USV driver v0.2
The Batcomms control module enables anyone to build their own UGV or USV—even in a home garage. It supports electric motor control, steering servo operation, and provides plenty of controllable inputs and outputs. Compatible with our communication module.
DESCRIPTION
It can control either one or two motors, allowing you to build a four-wheel-drive or tracked vehicle. It can also be installed on a boat to control an electric motor. When combined with our transmitter and receiver, the operating range is up to 100 km. Programmable I/Os, switches with different power ratings, and servo outputs support a wide range of additional equipment.
.We have our own prototype UGV based on an electric ATV. It can carry payloads of up to 100 kg and reach speeds of up to 45 km/h. We can recommend a suitable chassis, motors, and servos for your project.
Buy the controller with our communication system and build your own all-terrain UGV or USV!
Specification
| Parameter | Value |
|---|---|
| Operating power | 12–36 V, 70A, motors 1500/3000W |
| Steering servo | yes |
| Outputs/Inputs | 3 pcs 12V |
| 5V RC servos | 3 pcs |
| Programmable IOs | 5 pcs |
| Interfaces | serial, USB |
Download PDF
Download the product’s technical information as a PDF file.
Use cases
You can easily integrate it with your electric ATV in your home garage or use it to control an electric motor on a watercraft. For a more ambitious project, you can build the base platform yourself.
For all our devices, custom solutions and customer-specific requirements are welcome. We develop both the hardware and software ourselves, allowing us to adapt our products to your needs. All development takes place in Estonia.
