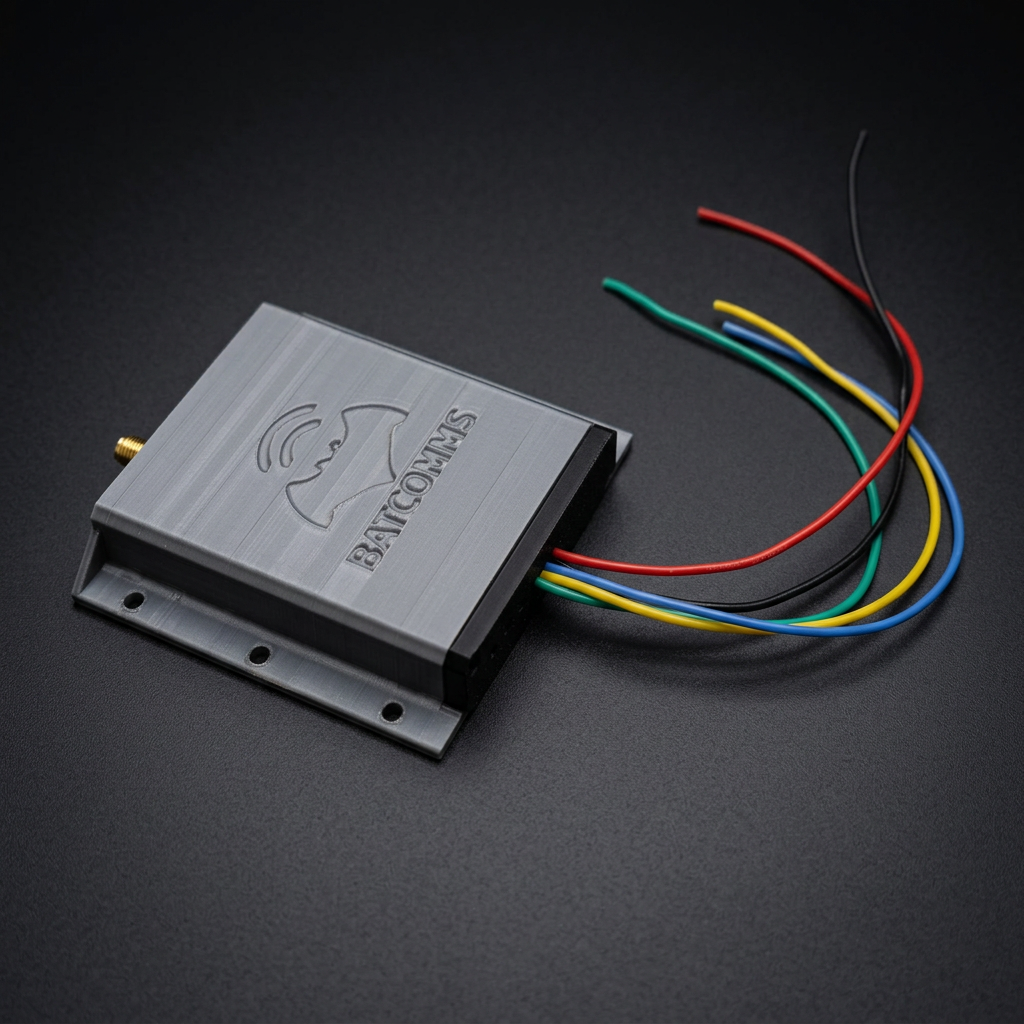

Receiver v0.4
The receiver for the Batcomms communication kit, designed for installation on a drone or sensor.
DESCRIPTION
Up to 249 receivers can be connected to a single BC repeater network, with up to 10 operating simultaneously. The receiver is also available as a PCB for integration into your own solution. Its onboard I/O connections can also be used.
For more information, see the Batcomms communication kit page.
Specification
| Parameter | Value |
|---|---|
| PCB | W: 59 mm L: 52 mm H: 10 mm ; 16 g |
| Firmware | v3.08 |
| Link | Digital half-duplex, AES128 encrypted |
| Network | Raw data speed 250 kbps, delay < 50 ms |
| Power | > +32.6 dBm |
| Frequency & modulation | 2300-2700 MHz, GFSK & FLRC |
| Protocol | Proprietary |
| Interface | Serial port |
Download PDF
Download the product’s technical information as a PDF file.
Use cases
Control of various types of drones with telemetry feedback, sensor data collection, and inter-computer data communication, including in crisis situations.
For all our devices, custom solutions and customer-specific requirements are welcome. We develop both the hardware and software ourselves, allowing us to adapt our products to your needs. All development takes place in Estonia.
